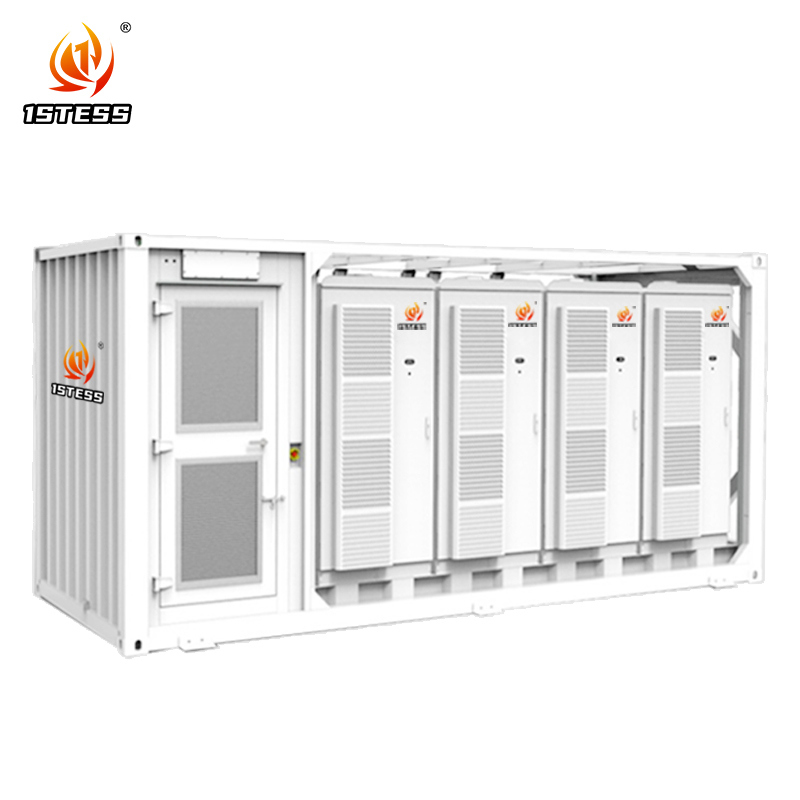

Modular Battery Energy Storage System IP55 Outdoor Rated Container Solution 1500kWh

Name: Modular Battery Energy Storage System IP55 Outdoor Rated Container Solution 1500kWh
Brand: Shenzhen First Tech Co., Ltd.
SKU: EnerCube
Price: 516,094.00 USD
Availability: InStock

Dettagli del prodotto

Luogo di origine: Cina

Marca: 1stess

Certificazione: 1

Numero di modello: EnerCube

Documento: Specification EnerCube3.0-F...ch.pdf

Termini di trasporto & di pagamento

Quantità di ordine minimo: 1

Prezzo: negotiable

Imballaggi particolari: Contenitore

Tempi di consegna: 60-90 giorni

Termini di pagamento: L/c, t/t

Capacità di alimentazione: 10 contenitori al mese

Ottenga il migliore prezzo

Contatto ora

Specificità

Descrizione

Specificità

Evidenziare:
                                                                                                                                                                                                                                                                                                                                                                                                      Modular battery storage system IP55, Outdoor battery container solution 1500kWh, Containerized energy storage system with warranty


Sistema di monitoraggio:	Monitoraggio e controllo a distanza	Gamma di tensione:	400-800V
Dimensione del contenitore:	20 piedi	Garanzia:	5 anni
Applicazione:	Stabilizzazione della griglia elettrica e rasatura di picco	Capacità della batteria:	Negoziabile

Sistema di monitoraggio:	Monitoraggio e controllo a distanza
Gamma di tensione:	400-800V
Dimensione del contenitore:	20 piedi
Garanzia:	5 anni
Applicazione:	Stabilizzazione della griglia elettrica e rasatura di picco
Capacità della batteria:	Negoziabile

Descrizione

Modular Battery Energy Storage System IP55 Outdoor Rated Container Solution 1500kWh

Product Features:

Modular design
All-in-One design
Supports AC and Dc coupling
Standard 20HQ container
Classification society certification
7*24 hours monitoring
Online assisted O&M

Product Parameters:

Type	P400C860	P500C1075	P600C1290	P700C1505	P800C1720
DC side parameters
Cell type &capacity	LiFePO₄-280Ah
Battery module type	1P20S
System configuration	4*1P240S	5*1P240S	6*1P240S	7*1P240S	8*1P240S
Capacity(BOL)	860kWh	1075kWh	1290kWh	1505kWh	1720kWh
AC side parameters
Grid type	3P4W+PE
Rated output power	400kW	500kW	600kW	700kW	800kW
Rated voltage	AC400V
Rated frequency	50/60(±5)Hz
Maximum output current	577A	722A	866A	1010A	1155A
Harmonics	<3%(@rated power)
Overload capacity	110%,10mins;120%,60s
General parameters
Isolation transformer	No
Protection level	Outdoor installation (Battery cabinet:IP55,Electrical room:IP34)
Container anti-corrosion grade	C3
Operation temperature*	-20℃~50℃
Relative humidity	0~95%(non-condensing)
Permissible altitude**	<2000m
Cooling method	Battery cabinet:HVAC,Electrical room:forced air cooling
Fire fighting system	FAS &FM200/Novec1230
Noise emission	≤75dB
Dimension (WDH)	20HQ container (6058mm2438mm2896mm)
Maximum weight	24500kg
Communication interface	Ethernet
Communication protocol	Modbus TCP/IP
Warranty	5 years (can be extended to 10 years)Warranty
Certification	System:UN3536,LVD,EMC,RoHS Cell:IEC62619,UL1973,UL9540A PACK:UN38.3 PCS:G99,EN50549,AS4777.2,VDE4105

Modular Battery Energy Storage System IP55 Outdoor Rated Container Solution 1500kWh 8

Core Advantages of Our Containerized Energy Storage System

All-in-One Plug & Play Design Pre-integrated within a standardized shipping-integrated within a standardized shipping container for rapid deployment. Reduces on-site installation time by up to 70% and slashes project costs. Optimized for seamless transport, lifting, and maintenance.
Intelligent Modular Architecture Self-managing battery clusters with built-in thermal isolation ensure safety and reliability. Maintain or replace individual clusters without shutting down the entire system—minimizing operational disruptions.
Universal Energy disruptions.
Universal Energy Integration Supports both AC and DC coupling for flexible connectivity with solar arrays, wind turbines, diesel generators, and grid networks. Enables efficient bidirectional energy flow for charging/discharging.
Scalable Power & Robust Performance Choose from 400kW–800kW power outputs and 860kWh–1720kWh capacities. Delivers high efficiency (<3% harmonic distortion) with overload resilience (110% for 10 mins, 120% for 60s).
Military-Grade Safety Multi-layer protection: fire suppression (FM200/Novec1230), thermal runaway containment, and 24/7 monitoring. Globally certified (UL1973, IEC62619, UN38.3) with IP55/IP54 environmental shielding.

Environmental shielding.

Extreme Environment Ready Operates from -20°C to 50°C and withstands 95% humidity. Corrosion-resistant (C3 grade) and altitude-adaptive (up to 2000m). Low-noise operation (≤75dB) ensures community-friendly deployment.
Smart Predictive Maintenance Cloud-based monitoring platform enables remote diagnostics, fault prediction, and proactive servicing—cutting downtime by 40% and extending system lifespan.
Future-Proof Investment Backed by a 5-year standard warranty (extendable to 10 years), reducing long-term ownership risks.
